CNC WIRE EDM MACHINES

BAO VINH OWNS 4 CNC WIRE EDM MACHINES

Maximum Workpiece Dimensions	Up to 800 × 600 × 250 mm
Maximum Machining Thickness	Up to 250 mm
Machining Accuracy	Up to ±0.005 mm
Surface Roughness	Ra 0.8–1.6 µm (depending on material, thickness, and cutting conditions)
Wire Electrode Diameter	Approximately Ø0.10–0.30 mm
Positioning Accuracy	Up to ±0.005 mm
Machinable Materials	Carbon steel, tool steel, SKD11, SKD61, heat-treated steel, carbide, and other electrically conductive materials.
Applications	Precision mold machining, stamping dies, jigs and fixtures, precision mechanical components, complex profiles, narrow slots, and components requiring tight tolerances.

Chat Zalo

Hotline: (+84) 983 912 383

Hỗ trợ trực tuyến

- Director
(+84) 983 912 383

CNC WIRE EDM MACHINING – PRECISION MACHINING OF COMPLEX PROFILES

A CNC Wire EDM (Electrical Discharge Machining) machine is a precision machining tool that uses electrical discharge erosion to cut electrically conductive materials along profiles programmed into the CNC system. This is an important technology used in precision mechanical machining, mold manufacturing, and jig and fixture fabrication.

CNC Wire EDM Technology at Bao Vinh

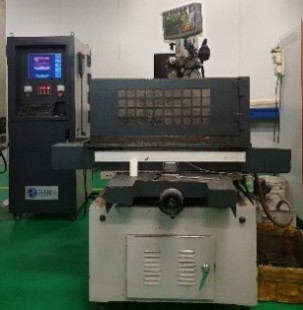

At Bao Vinh Industry Devices Company Limited, CNC Wire EDM machines are used to machine components requiring high precision, particularly parts with complex profiles, narrow slots, small internal corners, or tight tolerance requirements. Bao Vinh currently operates four wire EDM machines, as detailed below:

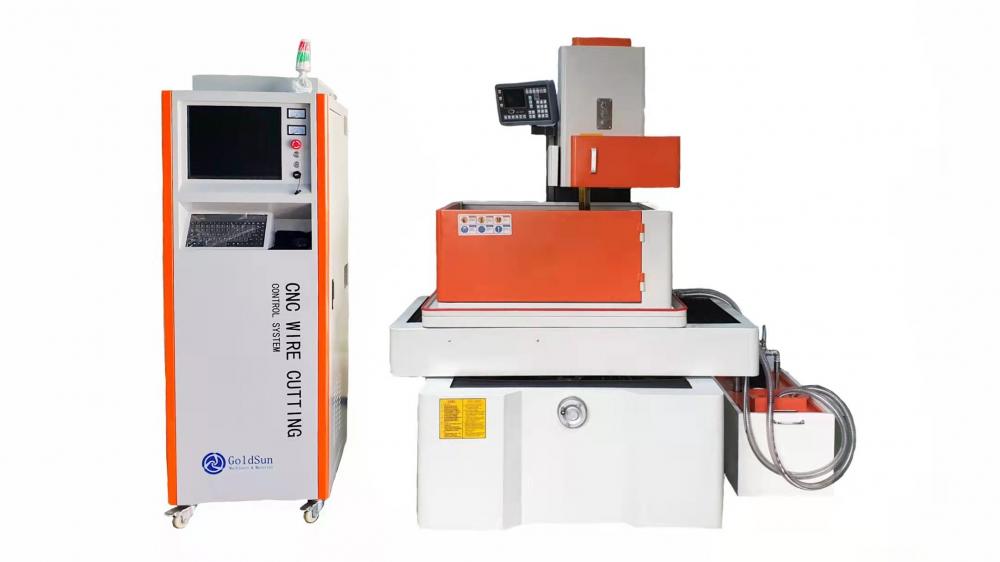

GOLDSUN GS4563AC

2 machine

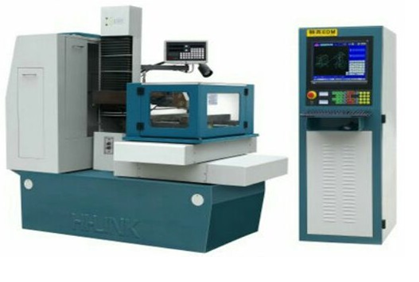

GOLDSUN GS4050

1 machine

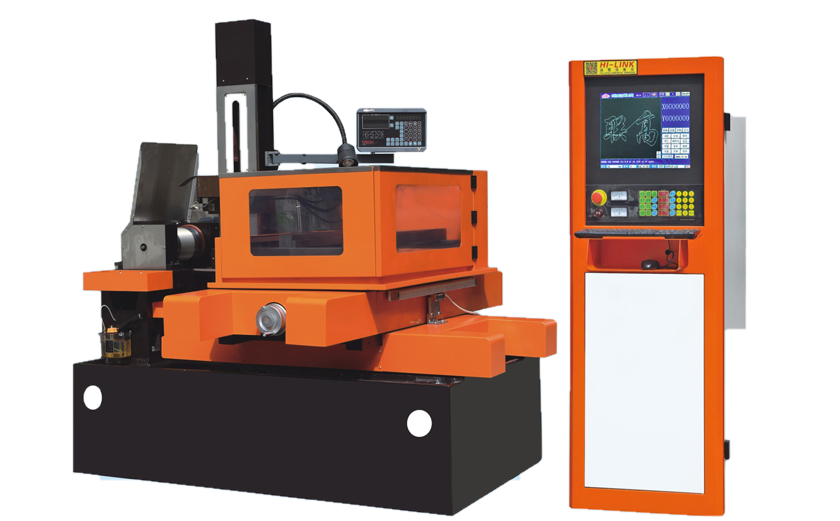

GOLDSUN GS4555SP

1 máachine

Unlike conventional cutting processes, wire EDM uses a thin wire electrode to generate electrical discharges between the wire and the workpiece. This enables efficient machining of high-hardness materials and components that have undergone heat treatment.

Applications of CNC Wire EDM

Bao Vinh’s CNC Wire EDM technology is used for:

Machining stamping dies, cutting dies, and precision molds.

Manufacturing production jigs and fixtures.

Cutting complex profiles according to technical drawings.

Machining narrow slots, small corners, and components with special geometries.

Machining tool steel, hardened steel, and other electrically conductive materials.

Manufacturing precision mechanical components to customer specifications.

Bao Vinh – Precision Mechanical Machining with CNC Wire EDM

With modern machinery, an experienced technical team, and a quality management process certified to ISO 9001:2015, Bao Vinh provides CNC Wire EDM machining services based on technical drawings, supporting requirements ranging from prototyping and small-batch production to mass production.

Bao Vinh is committed to stringent control of dimensions, profiles, and surface quality to meet the technical requirements of each product.

If you require CNC Wire EDM machining, mold manufacturing, or precision mechanical component machining, please contact Bao Vinh for technical consultation and a quotation based on your drawings.
